Track Lighting: The Complete Guide + Best Track Lights for Every Space

Track lighting is one of the most versatile and modern lighting systems you can install in a home or commercial space. It gives you the ability to direct light exactly where you want it, highlight key areas, and create a premium look without needing dozens of separate ceiling cutouts. Instead of relying on one flat overhead light, track lighting lets you create layers, contrast, mood, and brightness control.

If you are designing a kitchen, lighting a retail store, upgrading a living room, or building a showroom style interior, track lighting is one of the smartest options available because it adapts. You can reposition heads, swap fittings later, and expand the system as your needs change. That flexibility is why track lighting is a favourite among interior designers, electricians, and store owners.

This guide will explain everything you need to know about track lighting, including track types, mounting methods, beam angles, brightness, colour temperature, CRI, layout planning, installation tips, and how to choose the best track lighting for your project. If you are ready to buy, you will also see clear pathways to the most common track lighting systems and track heads used in the real world.

What is track lighting?

Track lighting is a lighting system where multiple adjustable light heads mount onto a powered track installed on your ceiling or wall. The track acts like a rail that provides power along its length, allowing multiple lights to be attached and positioned wherever you need them.

This system is very different from traditional ceiling lights because it does not lock you into a fixed location. Track heads can slide along the track, rotate, tilt, and be swapped out over time. That means the lighting can evolve with the space, rather than forcing the space to work around the lighting.

Track lighting is often chosen because it gives you both task lighting and accent lighting in one system. With the right track heads, you can create bright general illumination, highlight artwork, point light at product displays, or design dramatic architectural contrast.

A track lighting system typically includes:

• The track, which is the powered rail mounted to the ceiling
• Track heads, which clip into the track and deliver directional light
• Accessories and connectors, used to extend the track or create shapes
• A power feed, where electricity enters the track system
•

• You’re in expert hands when it comes to art lighting

•

Why track lighting is so popular?

Track lighting has grown massively in popularity because modern LED track heads are now powerful, efficient, and aesthetically clean. Track lighting is no longer just a commercial store lighting option. It is now common in premium homes, kitchens, loft spaces, apartments, and design driven interiors.

In many spaces, track lighting can replace recessed downlights completely. It provides directional control, reduces the need for cutting multiple holes, and gives you a modern architectural look. Most importantly, it gives you control over how the space feels.

Track lighting can make a space feel more luxurious because you can create contrast. Instead of flooding a room with uniform light, you can guide attention to specific zones and features, which instantly makes the environment feel curated.

Track lighting is popular because it provides:

• Adjustable direction so you can aim light exactly where you want it
• Flexible layouts that can be updated anytime
• A modern, premium aesthetic
• Strong task lighting for benches, desks, and counters
• Strong accent lighting for displays, artwork, and feature walls
• Easy future upgrades by adding more heads or changing beam angles

Types of track lighting (choosing the right system)

One of the first decisions you need to make is the type of track system. Track lighting is not universal, and compatibility matters. If you choose the wrong track type, you may accidentally limit your head options or buy fittings that do not lock into your track.

The three most common standards are H track, J track, and L track. While all three exist in the market, there is a clear winner when it comes to flexibility and modern compatibility.

H track vs J track vs L track (compatibility)

Track lighting systems are not interchangeable. Even if two track heads look similar online, they may not fit the same track. This is one of the biggest frustrations buyers face when purchasing track lighting without understanding compatibility.

In North America, the most common standards are H track, J track, and L track. The most important difference between them is how widely supported they are by modern track heads, connectors, and accessory systems. If you want the most options now and the most flexibility later, you want the most common standard.

For most projects, H track is the best choice. It is the most common system in North America, widely supported, and has the broadest ecosystem of compatible products. This is exactly why at TrackLightingWorld, H track is the primary system we sell and recommend. It makes the buying process easier, the installation easier, and future upgrades simpler.

H track is also ideal for both residential and commercial applications, especially when you want higher output LED heads, strong beam control, and the ability to expand your track layout later.

Here is a simple comparison:

• H track: most common, most compatible, best future flexibility
• J track: less common, fewer modern head choices available
• L track: niche legacy option, often limits modern upgrades

If you are starting from scratch and want the most reliable system, choose H track.

1 circuit vs 2 circuit track lighting (what it means)

Track lighting can be built with one circuit or two circuits. This impacts how the lights behave when switched on and off.

A one circuit track system means all heads on the track operate together. They all turn on and off together from the same switch. This is the most common option for residential applications and many small commercial installs.

A two circuit track system allows you to control two separate groups of lights on the same track. This is useful in commercial environments where you want zoning. For example, a retail store may want one circuit for general product lighting and another circuit for feature displays or a window highlight.

Most people choose one circuit for simplicity, but if your project requires zoning and layered control, two circuit track is a strong upgrade.

Common circuit selection guidelines:

• Choose one circuit for most homes and standard installs
• Choose two circuit for retail stores, galleries, and zoning requirements
• Choose two circuit if you want layered control on one track run

Track lighting mounting styles

Track lighting can be mounted in multiple ways depending on ceiling height, architecture, and visual preference. This is one of the reasons track lighting works in so many different projects.

The mounting style affects the appearance and performance of the system. For example, in high ceilings you may want suspended track so the light source sits closer to the target. In minimalist architectural projects, recessed track may be preferred to keep ceilings clean.

Ceiling mounted track lighting

Ceiling mounted track lighting is the most common style. The track mounts directly to the ceiling surface and the heads clip in underneath. This is popular because it is simple, clean, and compatible with most ceiling types.

It works perfectly for residential applications, offices, and most retail environments. It also makes future changes easy because track and heads remain accessible.

Ceiling mounted track lighting is ideal for:

• Standard residential ceilings
• Kitchens and living rooms
• Retail stores and showrooms
• Office spaces and studios

Suspended track lighting

Suspended track lighting hangs down from the ceiling using suspension cables or rods. This is most commonly used in spaces with high ceilings, open plan retail, or exposed ceiling designs.

Suspended track allows the lights to sit lower, which increases brightness on the target surface and improves beam control. It also creates a distinct architectural look that feels modern and intentional.

Suspended track lighting is ideal for:

• High ceilings
• Exposed ceilings
• Large retail spaces
• Projects requiring lower mounting height

Recessed track lighting

Recessed track lighting is installed into the ceiling so the track sits flush. This creates a very high end architectural finish. It is commonly used in premium residential builds, galleries, and spaces where design minimalism is a priority.

Recessed track requires more planning because it involves ceiling cavity integration. However, the result can be stunning, especially when paired with high performance track heads.

Recessed track lighting is ideal for:

• Premium architectural builds
• Minimalist interiors
• High end residential projects
• Galleries and luxury showrooms

Best uses for track lighting

Track lighting is extremely versatile, but it performs best when you need directional control. In many spaces, lighting quality is not about brightness alone. It is about controlling where the light goes and how the space feels.

Track lighting for kitchens

Kitchens need strong task lighting. People cook, prep, clean, and move constantly, so the lighting must be functional and clear. Track lighting is excellent in kitchens because it can be aimed at bench spaces, islands, sinks, and key working zones.

Instead of relying on one central light, track lighting spreads illumination across the task areas where it matters most. It also looks premium in modern kitchen design.

Track lighting works well in kitchens because:

• Heads can aim directly at bench and prep zones
• Light can be layered across multiple areas
• You can adjust angles as your kitchen layout evolves

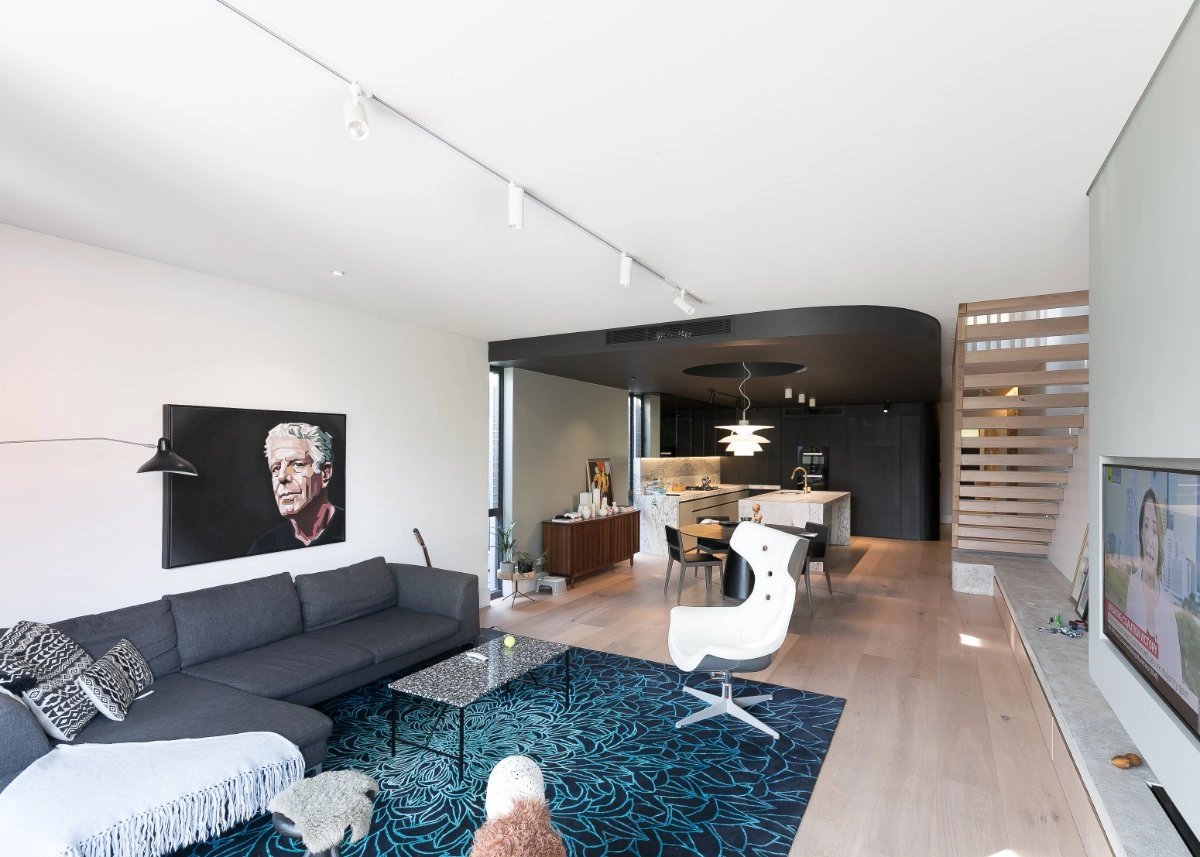

Track lighting for living rooms



Living rooms benefit from layered lighting. Flat overhead lighting can make living spaces feel harsh and uninviting. Track lighting allows you to mix general illumination with accent zones such as feature walls, artwork, shelves, and reading corners.

Track lighting can make living spaces feel more premium because it creates contrast and visual depth.

Track lighting works well in living rooms for:

• Lighting artwork and feature walls
• Creating reading zones
• Balancing general light with softer accent light

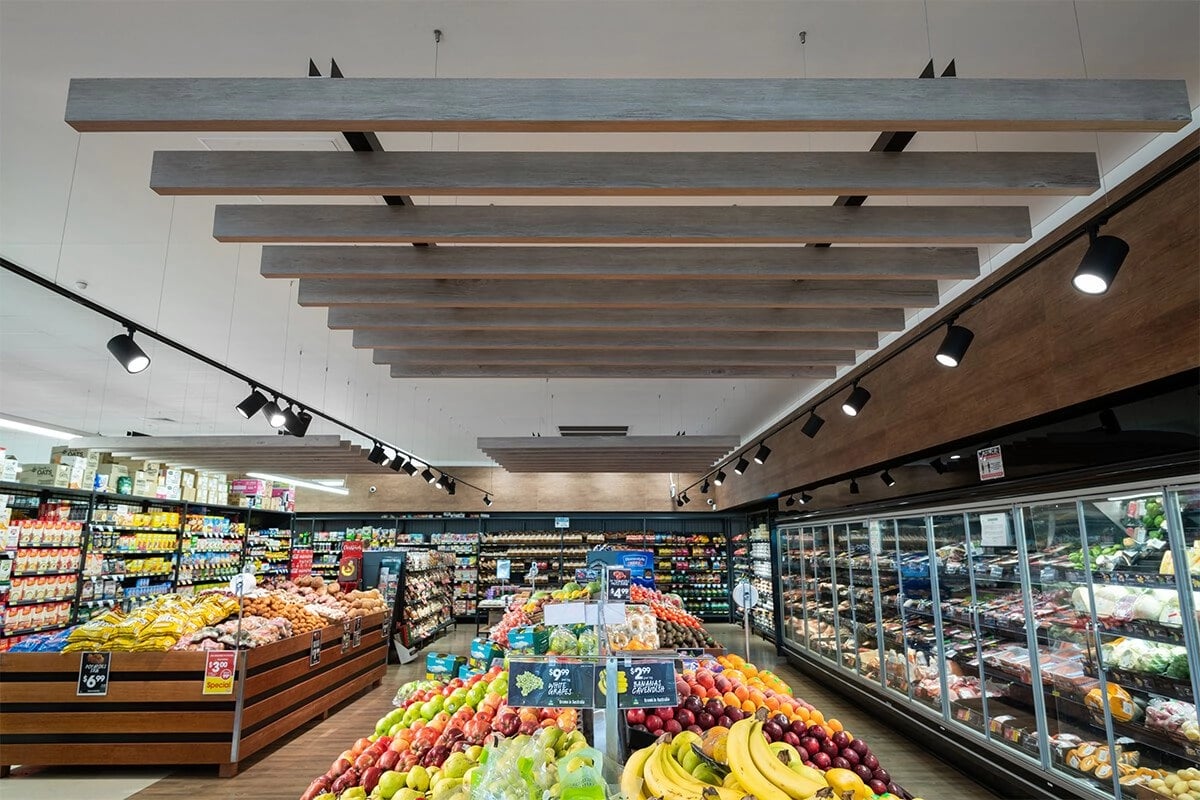

Track lighting for retail stores

Retail is one of the best use cases for track lighting. Product presentation matters, and lighting has a direct impact on how premium products appear. Track lighting allows you to highlight key displays, create contrast, and guide customers through the store.

Retail layouts also change. Track lighting is perfect because fixtures can be repositioned without rewiring the ceiling.

Retail track lighting benefits include:

• Better product presentation
• Flexible merchandising changes
• Better control over brightness and attention

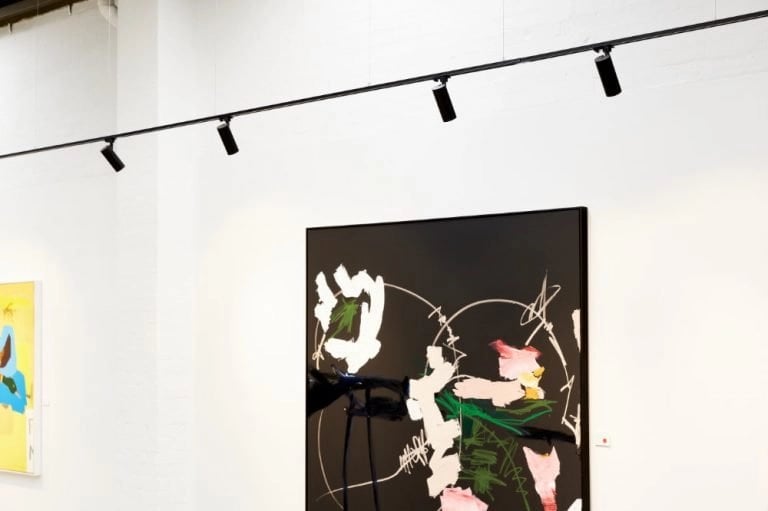

Track lighting for artwork and galleries

Artwork lighting requires beam control, colour accuracy, and glare reduction. Track lighting is ideal for galleries because each piece can be aimed precisely. High CRI track heads ensure artwork colours appear accurate, not dull or distorted.

This is the same principle used in professional galleries and museums, scaled down for commercial and residential projects.

Track lighting is excellent for artwork because:

• Beam angles can be matched to artwork size
• Heads can be aimed precisely
• High CRI options improve colour accuracy

Track lighting for offices and studios



Offices and studios often need clean and consistent brightness. Track lighting allows zones to be lit clearly without requiring extensive ceiling changes. It also allows lighting direction to be tailored to work areas, desks, and creative zones.

Studios often benefit from cooler colour temperatures for clarity and detail.

Office and studio track lighting supports:

• Task lighting zones
• Clean uniform brightness
• Adjustable positioning for changing layouts

How to choose track lighting (buyer’s checklist)

Choosing track lighting should be done with intent. The biggest mistake people make is buying based on appearance alone without considering performance variables like beam angle, brightness, and colour temperature.

Your track lighting system should be built around the purpose of the space. Is it task lighting for cooking? Is it accent lighting for artwork? Is it product highlighting for a retail store? Once you define the goal, the choice becomes easy.

Room size and ceiling height

Larger spaces require either more track heads or higher output heads. Higher ceilings also change the performance because light spreads more over distance. If ceilings are high, you may need higher output heads or more fixtures to achieve the same brightness.

A common reason track lighting disappoints is underpowered head selection relative to ceiling height.

Consider these factors:

• Ceiling height above 9 feet usually needs higher output
• Larger rooms benefit from longer tracks or multiple runs
• High ceilings may benefit from suspended track solutions

How many track heads do you need?

The number of heads depends on room size and purpose. Some rooms only need accent lighting, while others require full illumination. As a general guideline, most small rooms need around 3 to 5 heads, and larger spaces may need 8 to 16 heads.

It is usually better to install more heads with dimming ability than to install too few heads and regret brightness later.

A simple guide:

• Small rooms: 3 to 5 heads
• Medium rooms: 5 to 8 heads
• Large rooms and retail: 8 to 16 or more

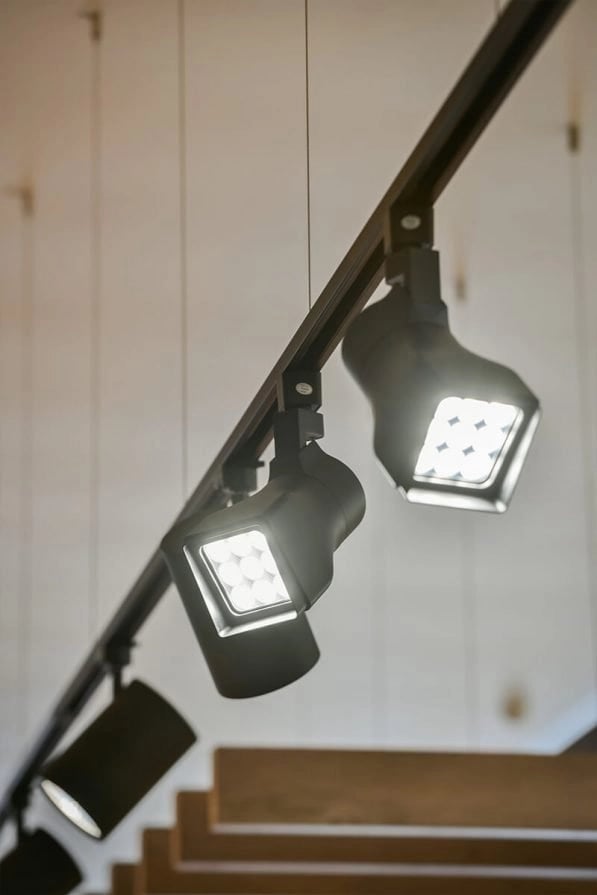

Adjustable heads vs fixed heads

Adjustable heads are generally the best choice because they allow you to aim light precisely and reduce glare. Fixed heads lock the lighting direction which reduces flexibility and makes future changes difficult.

For most projects, adjustable track heads are the safest option.

Adjustable heads are best because:

• You can aim light away from eyes and glare zones
• You can highlight specific features
• You can adjust lighting as the room changes

Dimming and smart controls

Dimming adds massive value because it allows you to adjust the mood and intensity. Modern LED track heads can often be dimmed using standard dimmers, but compatibility matters. Always ensure your dimmer type matches the driver type.

Smart controls may also be added depending on your system and preference.

Dimming considerations include:

• Ensure track heads are dimmable
• Confirm dimmer compatibility
• Consider smart dimmers if automation matters

Beam angle guide (critical for professional results)

Beam angle is one of the most important factors in track lighting. It determines how wide or narrow the light spreads. Beam angle affects brightness intensity, hotspotting, glare, and how premium the lighting feels.

Professional lighting design is often less about brightness and more about beam control. A narrow beam creates drama and focus. A wide beam creates general wash light.

Narrow beam vs wide beam

Narrow beams concentrate light into a smaller area, making the illuminated object brighter and more defined. Wide beams spread light across a larger area, creating softer illumination.

If you are lighting artwork or product displays, narrower beams often look more premium. If you are lighting a whole room, wider beams often feel more comfortable.

Beam angle ranges:

• Narrow: 10 to 24 degrees
• Medium: 25 to 40 degrees
• Wide: 40 to 60 degrees

Recommended beam angles by application

The best beam angle depends on what you are lighting. For example, artwork benefits from controlled beams to avoid spill and glare. Kitchens often benefit from wider beams to flood task areas evenly.

Typical recommendations:

• Artwork and feature displays: 15 to 30 degrees
• Retail product highlights: 15 to 36 degrees
• Kitchen task lighting: 36 to 60 degrees
• General room wash: 40 to 60 degrees

Avoiding glare and hotspots

Glare happens when beams are too narrow for the distance or aimed incorrectly. Hotspots happen when beams are too concentrated without enough overlap. Both issues can make a space feel harsh and uncomfortable.

The solution is correct beam selection, correct spacing, and correct aiming angles.

To reduce glare and hotspots:

• Increase beam angle where necessary
• Tilt heads to avoid eye line glare
• Use more heads with dimming instead of fewer harsh heads

Brightness guide (lumens)

Brightness is measured in lumens. The right lumen output depends on room purpose. A kitchen requires higher brightness than a lounge room. Retail lighting often requires higher brightness to create contrast and improve product appearance.

Many people underbuy lumens. They choose a small number of low output heads and then wonder why the space feels dim. Track lighting should feel intentional and premium. Brightness must match the purpose.

How many lumens do you need?

A general guideline is lumens per square foot. Living areas typically require 10 to 20 lumens per square foot. Kitchens require 30 to 40 lumens per square foot. Retail often requires 30 to 50 lumens per square foot depending on ceiling height and product category.

This is not a strict rule but it provides a strong baseline.

Lumens per square foot guideline:

• Living areas: 10 to 20
• Kitchens: 30 to 40
• Retail and commercial: 30 to 50

Under lighting vs over lighting

It is usually better to slightly overbuild brightness and then dim down. This gives flexibility. A dim system cannot be fixed without adding more heads, but a bright system can be controlled with dimming and aiming.

A strong rule of thumb:

• Build brightness first
• Add dimming control for comfort

Colour temperature guide (2700K vs 3000K vs 4000K vs 5500K)

Colour temperature affects how the space feels. The same room can look warm and cozy at 2700K or crisp and energetic at 4000K. Colour temperature also affects how products and surfaces appear.

Choosing the wrong colour temperature is one of the most common regrets people have with lighting.

2700K warm white

2700K is a warm cozy tone similar to traditional incandescent bulbs. It creates a relaxed atmosphere and is popular in bedrooms, lounge spaces, and hospitality environments. It can make timber finishes feel rich and warm.

2700K is commonly used for:

• Bedrooms
• Warm living rooms
• Restaurants and hospitality

3000K soft warm white

3000K is the most popular modern residential colour temperature. It still feels warm and premium but looks cleaner and more modern than 2700K. Many designers use 3000K for kitchens and living spaces.

If you want a premium high end residential feel, 3000K is often the best choice.

3000K works well for:

• Kitchens
• Living areas
• Hallways and open plan spaces

4000K neutral white

4000K looks brighter and cleaner. It is popular for retail and commercial environments because it improves clarity and makes spaces feel sharp. Many modern retail stores use 4000K because it increases product freshness.

4000K is ideal for:

• Retail stores
• Offices
• Studios
• Workspaces

5000K to 5500K daylight

Daylight colour temperatures create maximum clarity. They are often used in studios, workshops, and some retail environments where maximum visual detail is required. In homes, they are less common because they can feel very crisp.

5000K to 5500K works well for:

• Studios and workshops
• Detailed task zones
• Certain retail and display environments

Adjustable colour temperature is the safest option

If you are unsure which colour temperature is best, adjustable CCT track heads are a major advantage. They allow you to choose the temperature that suits your space rather than being locked into one option.

Our 30W high output LED track head includes a colour temperature switch on the back of the fitting. This allows you to adjust the colour temperature across a wide range, typically:

2700K, 3000K, 3500K, 4000K, 5000K, 5500K

This means you can use one fitting for multiple purposes and adjust the lighting mood later. It also removes the risk of buying the wrong colour temperature and needing replacements.

Adjustable CCT is powerful because:

• It suits residential and commercial projects
• It future proofs your install
• It allows mood control and flexibility

CRI explained (colour accuracy)

CRI stands for Colour Rendering Index. It measures how accurately colours appear under a light source compared to natural daylight.

CRI matters more than most people realise. Low CRI lighting can make products look dull and unappealing. It can also make skin tones look strange. In retail and artwork lighting, CRI is one of the most important variables.

High CRI lighting improves visual quality. It makes items look richer, cleaner, and more premium. In a retail environment, this directly impacts customer perception and buying behaviour.

Recommended CRI levels

Most standard residential lighting sits around 80 CRI. This can work fine for general use. But for retail, galleries, and premium spaces, higher CRI is strongly recommended.

Recommended CRI guidelines:

• Residential general lighting: 80 CRI or higher
• Retail stores: 90 CRI or higher
• Artwork and galleries: 90 CRI or higher

Track lighting layouts and spacing (practical planning guide)

Layout planning is where track lighting becomes professional. You can buy great products, but if the layout is wrong, the lighting will feel harsh, uneven, or dull.

A good track lighting layout starts with intention. You decide what to highlight, where task zones are, and where general light is required. Then you plan track placement, head spacing, and aiming.

How far apart should track heads be?

Spacing depends on ceiling height, brightness, and beam angle. In residential spaces, heads are often spaced 2 to 4 feet apart. In retail spaces, heads may be spaced 3 to 5 feet apart depending on the ceiling height and beam spread.

The goal is overlap. You want beams to overlap slightly so the space feels even without hotspots.

Typical spacing guidelines:

• Residential: 2 to 4 feet between heads
• Retail: 3 to 5 feet between heads

Track placement examples

The track itself should be placed based on the target. For kitchen benches, place the track parallel to the bench and slightly offset. For hallways, place the track on the centre line. For retail, use parallel runs to distribute light evenly.

Good placement turns track lighting into architectural design.

Common track placement examples:

• Parallel to kitchen counters
• Centre line in hallways
• Multiple parallel runs in open plan spaces
• Perimeter placement to wash feature walls

Common layout mistakes

Most problems come from a few errors. The biggest one is using too few heads. Another is choosing the wrong beam angle or aiming heads into glare zones.

Track lighting should feel intentional, not random. If it looks random, it will feel cheap.

Common mistakes include:

• Too few heads installed
• Beam angle too narrow for the distance
• Heads aimed into eye line
• Track too far from the target surface

Track lighting installation overview

Track lighting installation is generally straightforward for a licensed electrician. The system mounts to the ceiling and is wired through the power feed. Once the track is installed, heads clip in and lock into place.

Some people can install track lighting themselves if they are experienced with electrical work. However, for safety and compliance, most installs should be completed by an electrician.

Hardwired vs plug in track lighting

Most premium track lighting is hardwired. Plug in track lighting exists but is more common in temporary or niche applications. Hardwired installs are cleaner and more professional.

Installation steps (high level)

The typical install includes mounting the track, wiring the power feed, securing the track sections, attaching heads, and aiming the lights.

Basic install includes:

• Mounting track to the ceiling
• Wiring into an existing power source
• Installing heads and accessories
• Testing and aiming for glare free performance

Track lighting finishes and style choices

Track lighting can be designed to blend into the ceiling or stand out as a feature. The most common finishes are black and white, and the choice influences the look of the space.

Black track lighting feels modern and premium. It often blends into darker ceilings and creates strong visual contrast. White track lighting blends into white ceilings and creates a clean minimal look.

Both can look high end. The best choice depends on the ceiling colour, interior style, and the desired effect.

Finish selection tips:

• Choose black for contrast and modern drama
• Choose white for minimal clean blending
• Match the track and heads for a cohesive premium look

Track lighting pricing (what you should expect)

Track lighting pricing varies depending on system quality and head performance. Some systems are budget focused and use lower CRI chips, cheaper drivers, and weaker optics. Premium systems usually offer better beam control, longer lifespan, better colour consistency, and more stable dimming.

In many spaces, track lighting is a long term investment. If you want premium results, the light quality matters more than the initial cost difference.

Pricing is influenced by:

• Head wattage and lumen output
• CRI quality and chip quality
• Beam angle optics
• Driver stability and flicker control
• Adjustable CCT features
• Warranty and lifespan
•

Common track lighting problems (and fixes)

Track lighting is reliable, but issues can happen when components are mismatched. Most problems are solvable.

Flickering

Flicker is commonly caused by incompatible dimmers, low quality drivers, or loose track connections. The fix usually involves confirming dimmer compatibility and ensuring heads are locked securely.

Buzzing

Buzzing often comes from electrical load mismatch or dimmer incompatibility. Upgrading to a compatible dimmer usually solves it.

Heads not working

If a head does not work, the most common cause is incorrect compatibility or improper alignment. Track heads must lock into place properly for power to flow.

Not dimming properly

Many dimming issues happen because the dimmer type does not match the driver type. Always confirm compatibility.

Most common fixes include:

• Check dimmer compatibility
• Confirm track type matches head type
• Ensure heads are locked in firmly
• Use higher quality drivers for stability

FAQs about track lighting (15 FAQs)

1. What is track lighting and how does it work?

Track lighting is a powered rail system that allows multiple adjustable track heads to be positioned along the track.

2. Is track lighting outdated?

No. Modern LED track lighting is widely used in premium homes and commercial spaces.

3. Is track lighting good for kitchens?

Yes. Track lighting is one of the best ways to light kitchen benches, sinks, and islands.

4. Can track lighting light up a whole room?

Yes. With enough heads and the right lumen output, track lighting can fully light a room.

5. How many track heads do I need?

Most residential spaces use 4 to 8 heads. Large rooms and retail often use 8 to 16 or more.

6. Can you add more heads later?

Yes. Track lighting is expandable and heads can be added or repositioned easily.

7. What is the difference between H track, J track, and L track?

They are different compatibility standards. H track is the most common and widely supported.

8. Are track heads universal?

No. Track heads must match the track standard (H, J, or L).

9. What is the best colour temperature for track lighting?

3000K is popular for homes. 4000K is popular for retail. Adjustable CCT is best if you want flexibility.

10. What is CRI and why does it matter?

CRI measures colour accuracy. Higher CRI improves product appearance, skin tone, and artwork quality.

11. Can track lighting be dimmed?

Yes, if the track heads are dimmable and the dimmer is compatible.

12. Does track lighting use a lot of electricity?

No. Modern LED track lights are energy efficient.

13. Can track lighting be installed on sloped or vaulted ceilings?

Yes. Track can be mounted to angled ceilings with the correct method and heads can be aimed accordingly.

14. Is track lighting hardwired or plug in?

Most track lighting systems are hardwired.

15. Can I install track lighting myself?

Some people can, but for safety and compliance, an electrician is recommended.

Shop track lighting



If you want the most compatible system with the widest range of modern options, start with H track lighting. It is the most common standard, is easy to expand, and offers the best ecosystem of track heads and accessories.

At TrackLightingWorld, we focus heavily on H track because it gives customers the best long term outcomes and avoids compatibility headaches.

If you are not sure what to choose, our team can help recommend the best system based on your space, ceiling height, beam angle needs, and colour temperature preference. Track lighting is one of the highest impact lighting upgrades you can make when designed properly, and the right setup will make your space feel instantly more premium.

What art collectors and gallery clients say about us?
