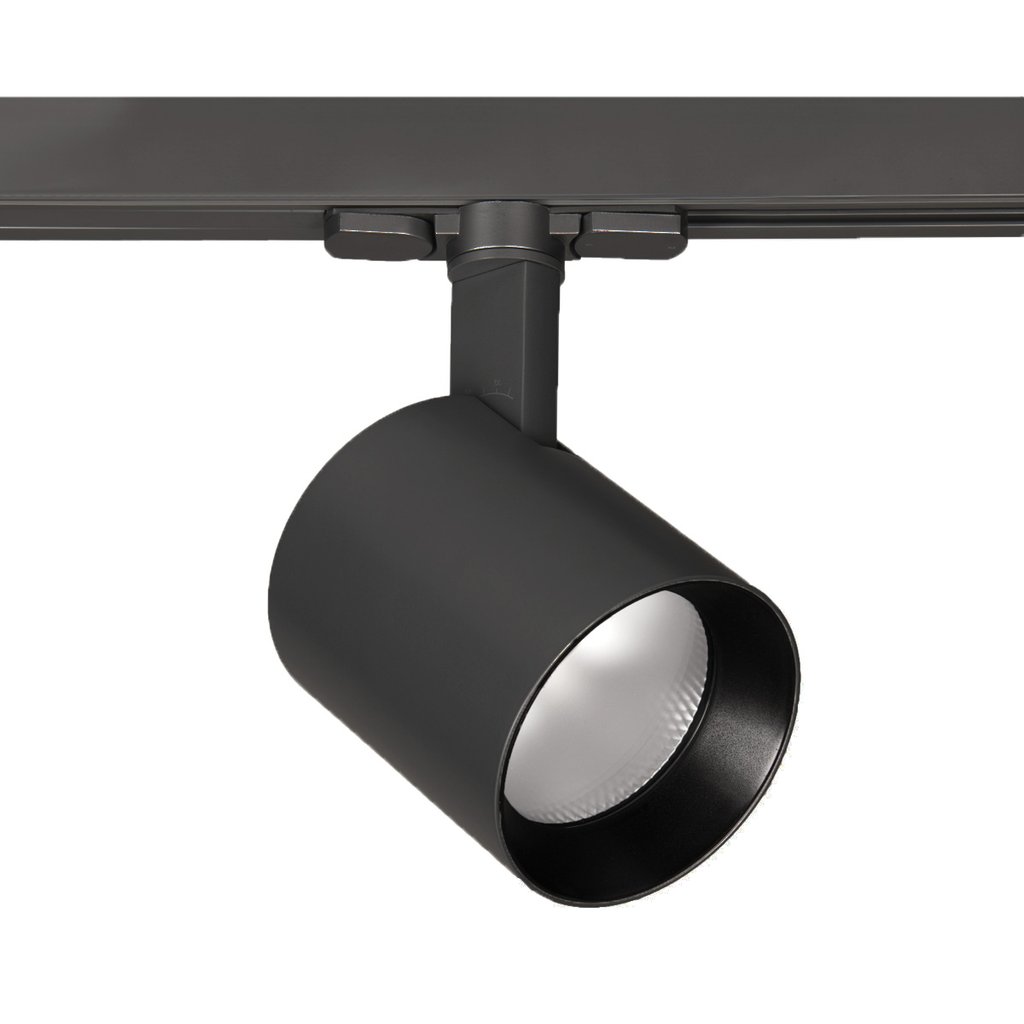

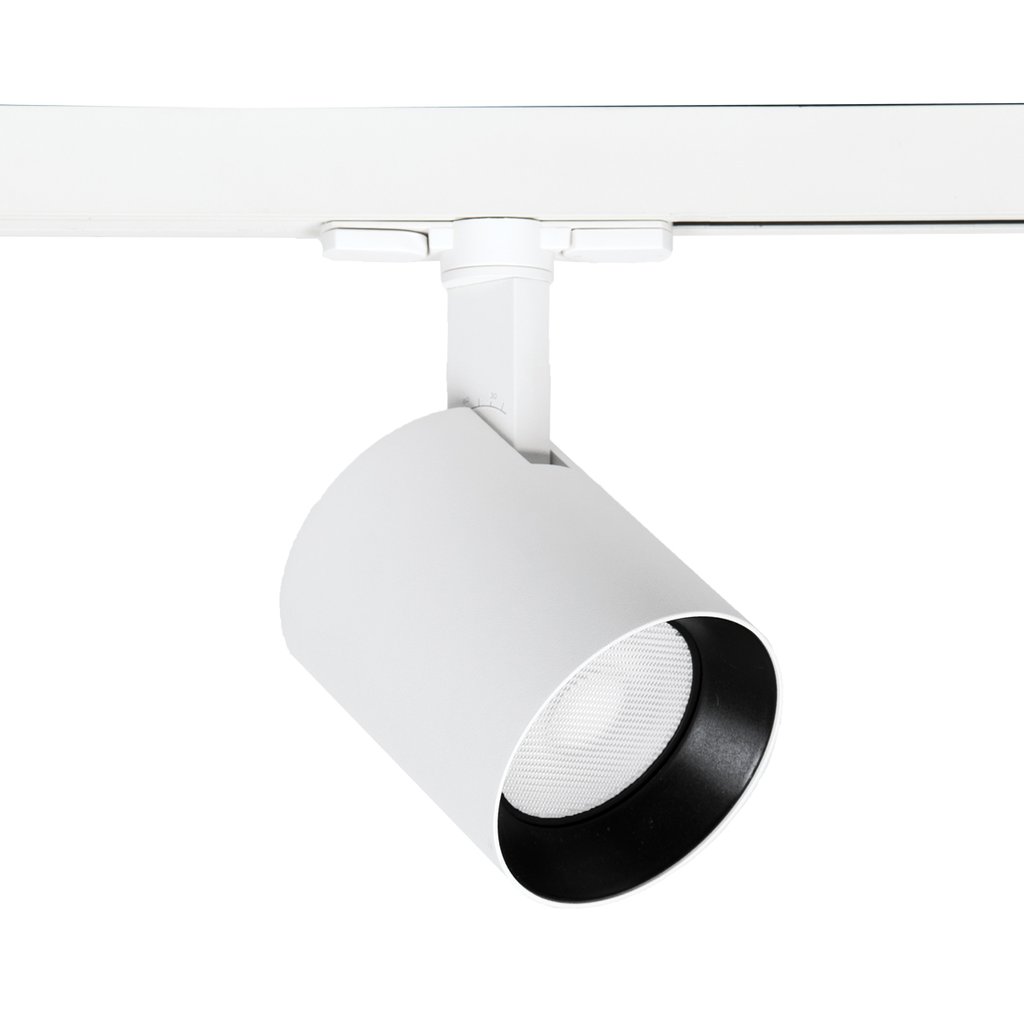

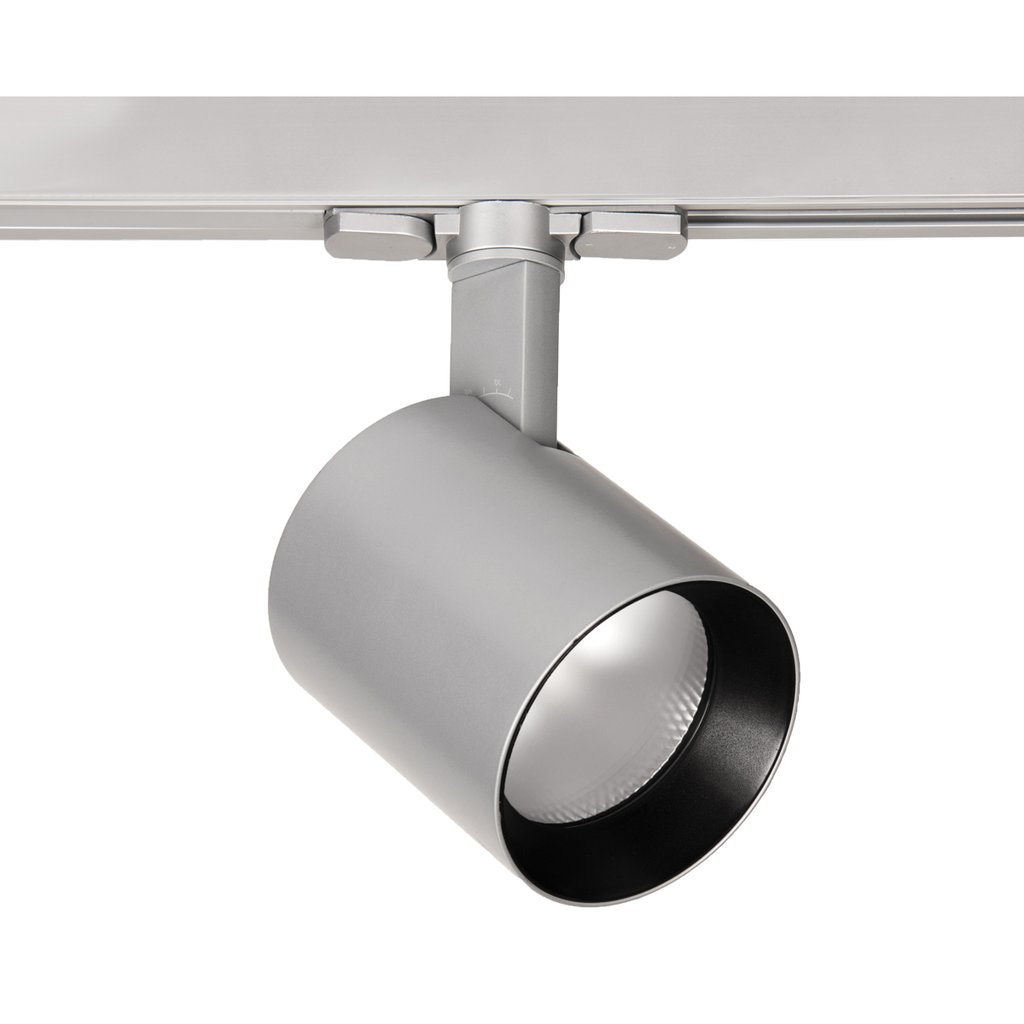

Lucio 6022 22W W Track Luminaire

We Deliver USA Wide

How Many Lights Will You Need?

Calculate how many lights you need for your space.

Lighting Calculator
Quantity
1 10
3

*You can drag the slider or enter a value manually to the right of the scale.

Progress: 20%
Track Lighting World Logo
Simon Mundine

Simon Mundine

The founder

We will take exactly what you need to know and create a custom quote for you to get started.

Lighting calculator
Calculating

Calculating...

It wont be long

Ready to Go? Purchase Your Lighting Kit Here.

Product Image 1
Product Image 2
Product Image 3
Product Image 4
Product Image
Nick Johnson

Nick Johnson

Founder of Carreer February 17, 2024
  • Delivery in 24-72 hours
  • 10 years warranty on track

Lucio 6022 22W W Track Luminaire

Fitting color
Lights quantity
Track required
Tracks Quantity
suspension kit required
additional comment
TOTAL:

$190

Specifications

  • Fitting Colour Black or White
  • Light Source COB LED
  • Mounting Method 3 Wire Single Circuit Track
  • Voltage 120V
  • Tilt, Rotate, Angle 90°, 350°
  • Beam Angle 15 To 60 Degree
  • Power 30W
  • CRI 90
  • Lumen Output 3750lm
  • Average Lifespan 50,000 Hours
  • Dimming Options Phase Dimming
    at the Wall Standard
  • Waterproof Rating IP20
    for indoor use only
  • Trim Colour Black or White
  • Colour Temperature CCT adjustable 2700K,
    3000K, 3500K, 4000K, 5000K

Lucio 6022 22W W Track Luminaire

  • Delivered Lumens: Up to 1890lm
  • CBCP: Up to 35930
  • CCT: 2700K, 3000K, 3500K, 4000K
  • CRI: Up to 90
  • Power: 22W
  • Input: 120 VAC, 277 VAC, 50/60Hz
  • ELV Dimming: 100-5%
  • TRIAC Dimming: 100-5%
  • Rated Life: 50000 Hours
  • Construction: Die-cast aluminum body with regressed driver.
  • Accommodates up to 1 lens and 1 glare control accessory
  • 365° horizontal aiming and 90° indexed vertical aiming
  • Integral selector to choose between independently controllable track circuits
  • CBCP intensive ultra spot, 6022U
  • Asymmetrical beam distribution, 6022A
  • Driver concealed within the fixture
See Specifications
